High Quality Open/Silent Type SDEC Diesel Generator 90KW/113KVA Backup Power Supply Water Cooling
| General information | Prime power | Standby power |
|---|---|---|
| Rated Power (kVA) | 113 | 124 |
| Power Rating (kW) | 90 | 99 |
| Frequency (Hz) | 50 | |
| Engine Model | SC4H160D2 | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |

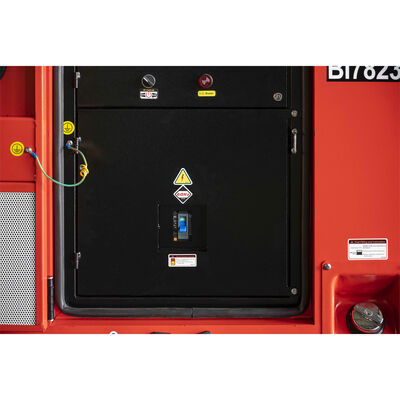

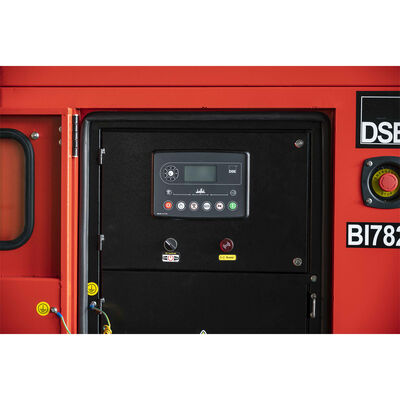

| Control System | Digital | |
| Rated voltage (V) | 400/230 (According to customer requirements) | |
| Fuel tank capacity operating time | ≥ 8h @ 75% load | |
PRP: Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.
ESP: The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
| Model | BSD124 | |
|---|---|---|

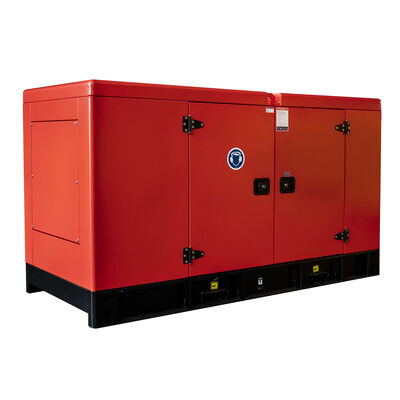

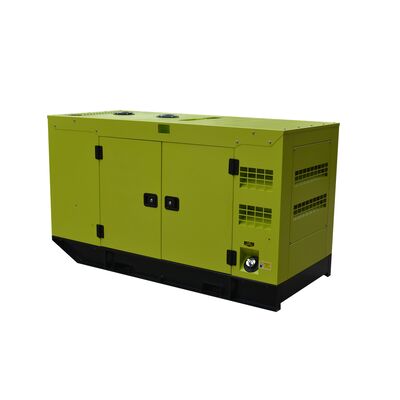

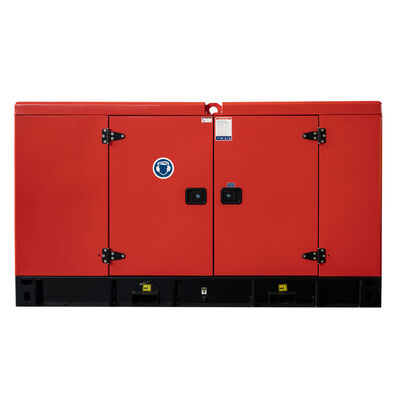

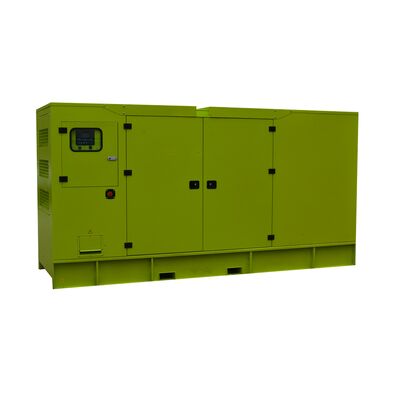

| Type | Open type | Silent type |
| Length (L) mm | 2000 | 2750 |
| Width (W) mm | 850 | 1100 |
| Height (H) mm | 1580 | 1430 |
| Tank capacity (L) | 207 | 207 |
Note: Specifications and illustrations are subject to revision without notice.
| Engine model & manufacturer | SC4H160D2(SDEC) |
|---|---|
| Engine Model | SC4H160D2 |
| Engine Type | In-line, 4 strokes, water-cooled; 4 valves, Turbo charged |
| Combustion type | Direct injection |
| Cylinder Type | Dry liner |
| Number of cylinders | 4 |
| Bore × stroke | 105 × 124 mm |
| Displacement | 4.3 lit. |
| Compression ratio | 16 : 1 |
| Firing order | 1-3-4-2 |
| Fuel injection advance angle | 11 °BTDC |
| Dry weight | 460 kg |
| Dimension | 1080 ×738×1078mm |
| Rotation | CCW viewed from flywheel |
| Fly wheel housing | SAE 3# |
| Fly wheel | SAE 11.5#(number of teeth: 127) |
| Injection pump | Beiyou in-line "AD" type |
| Governor | Electric type/RSV |
| Feed pump | Mechanical type |
| Injection nozzle | Multi hole type |
| Alternator Brand | BOBIG |
|---|---|
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-274D |
| Alternator Rated Power | 90kw/113kva |
| Rated voltage (V) | 230v/400v |
| Rated frequency | 50hz |
| Connecting Type | 3 Phase and 4 W |
| Number of Bearing | 1 |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper |
| Insulation Class | H class |
| Telephone Influence Factor (TIF) | ≤50 |
| THF | ≤2% |
| Voltage Regulation, Steady State | ≤±1% |
| Transient State Voltage | ≤-15%～+20% |
