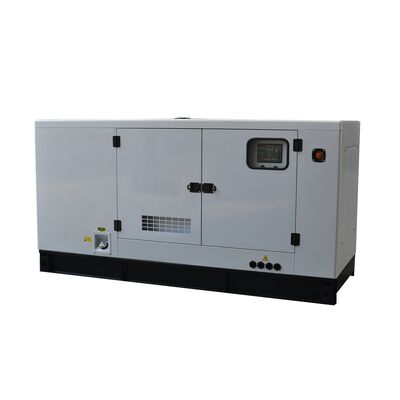

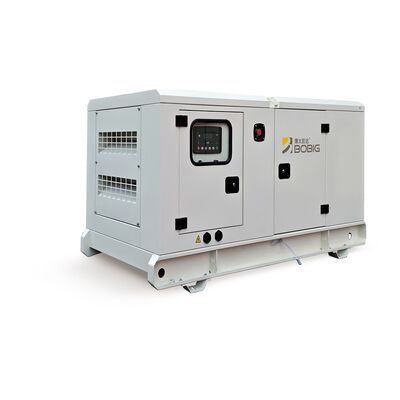

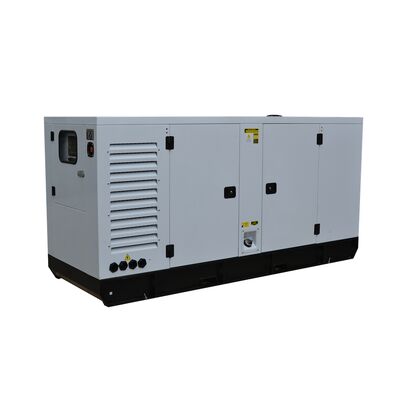

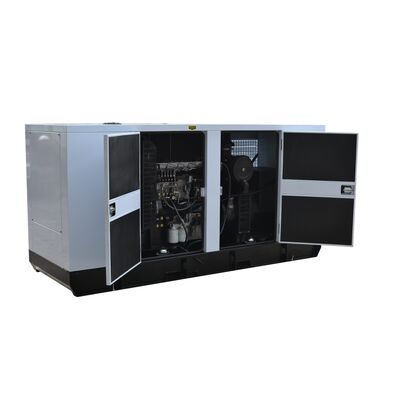

Our 160kW 200KVA BOBIG SDEC diesel generator (Model: SC8D280D2) is designed to provide reliable power for a wide range of applications. Backed by the SDEC brand, it offers high-quality performance and long-term durability.
Rated Power: 160kW (200KVA) - meets power needs for various industrial, commercial, and residential applications with stable and efficient prime power output.
Frequency: 50Hz standard frequency suitable for most electrical equipment.
Engine Model: SC8D280D2 SDEC engine with advanced technology, high torque, fuel efficiency, and low emissions.
Engine Speed: 1500 RPM for smooth, consistent power supply with minimal wear.
| General Information | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 200 | 220 |
| Power Rating (kW) | 160 | 176 |
| Frequency (Hz) | 50 | |
| Engine Model | SC8D280D2 | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |
| Control System | Digital | |
| Rated Voltage (V) | 400/230 (customizable) | |
| Fuel Tank Capacity Operating Time | ≥ 8h @ 75% load | |
PRP: Prime power available for unlimited annual hours in variable load applications according to GB/T2820-97; 10% overload capability available for 1 hour within 12-hour operation.
ESP: Standby power rating applicable for emergency power supply during utility interruptions. No overload, utility parallel, or negotiated outage operation capability available.
| Engine Specifications | |
|---|---|
| Engine Model & Manufacturer | SC8D280D2 (SDEC) |
| Engine Type | In-line, 4 strokes, water-cooled; 2 valves, Turbo charged with aftercooler |
| Combustion Type | Direct injection |
| Cylinder Type | Wet cylinder liner |
| Number of Cylinders | 6 |
| Bore × Stroke | 114 × 135 mm |
| Displacement | 8.27 lit. |
| Compression Ratio | 18 : 1 |
| Firing Order | 1-5-3-6-2-4 |
| Fuel Injection Advance Angle | 6°BTDC |
| Dry Weight | 740 kg |
| Dimension | 1472×762×1240mm |
| Rotation | CCW viewed from flywheel |
| Fly Wheel Housing | SAE2# |
| Fly Wheel | SAE 11.5# (125 teeth) |
| Injection Pump | Longkou in-line "P" type |
| Governor | Electric type |
| Feed Pump | Mechanical type |
| Injection Nozzle | Multi hole type |
| Alternator Specifications | |
|---|---|
| Alternator Brand | BOBIG |
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-274H |
| Alternator Rated Power | 160kW/200kVA |
| Rated Voltage (V) | 230V/400V |
| Rated Frequency | 50Hz |
| Connecting Type | 3 Phase and 4 W |
| Number of Bearing | 1 |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper |
| Insulation Class | H class |
| Telephone Influence Factor (TIF) | ≤50 |
| THF | ≤2% |
| Voltage Regulation, Steady State | ≤±1% |
| Transient State Voltage | ≤-15%~+20% |
| Dimension and Weight | Open Type (BSD220) | Silent Type (BSD220S) |
|---|---|---|
| Length (L) mm | 2370 | 3200 |
| Width (W) mm | 950 | 1200 |
| Height (H) mm | 1760 | 1660 |
| Tank Capacity (L) | 368 | 368 |
Plywood case packaging. Delivery within 10-15 working days after receiving customer deposit.
BOBIG products include a one-year or 1000-hour warranty (whichever comes first) from ex-factory date. During warranty, we provide free replacement of easy-damageable spare parts caused by production or material quality issues. Professional after-sales service team available 24/7 for technical support, maintenance, and repairs.
MOQ: 1 set. Payment: 30% T/T deposit, 70% balance before delivery, or 100% L/C, trade assurance, PayPal, Western Union. Delivery: 10-15 working days after deposit receipt.
Fuzhou port, Fujian province or as customer requested.
Yes, we provide regular engine filters (air, water, fuel, oil) for customer self-maintenance.
Yes, parts available anytime (not limited to warranty period), typically shipped within 3-5 days.
Yes, all specifications can be customized according to customer needs.
We welcome distributors worldwide. We provide authority certificates and sign distribution agreements accordingly.
