Our 200kW 250KVA BOBIG BAUDOUIN diesel generator (Model: 6M16G250/5) is designed to provide reliable power for a wide range of applications. Backed by the renowned BAUDOUIN brand, it offers high-quality performance and long-term durability.
Rated Power: 200kW (250KVA) with stable prime power output and standard 50Hz frequency suitable for most electrical equipment.

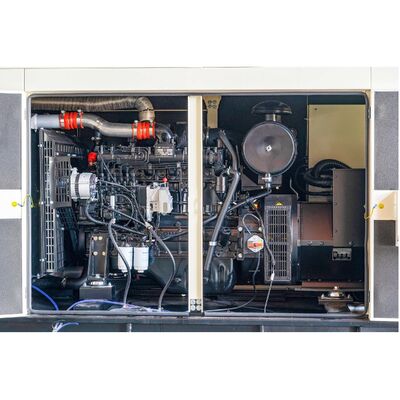

Powered by 6M16G250/5 BAUDOUIN engine with high torque, fuel efficiency, low emissions, and smooth operation at 1500 RPM.
| General Information | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 250 | 275 |
| Power Rating (kW) | 200 | 220 |
| Frequency (Hz) | 50 | |
| Engine Model | 6M16G250/5 | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |

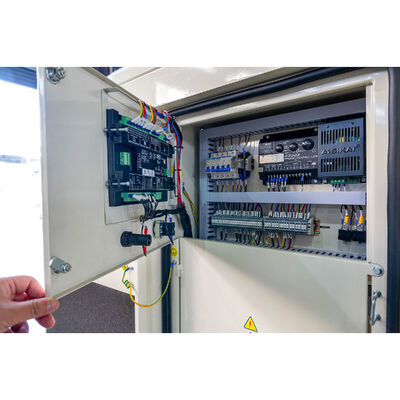

| Control System | Digital | |
| Rated Voltage (V) | 400/230 (Customizable) | |
| Fuel Tank Capacity Operating Time | ≥ 8h @ 75% load | |
| Engine Model & Manufacturer | 6M16G250/5 (BAUDOUIN) |
| Number of Cylinders / Valves | 6/12 |
| Cylinders Arrangement | In line |
| Bore x Stroke (mm) | 126 x 130 |
| Displacement (L) | 9.726 |
| Cooling System | Liquid (water + 50% antifreeze) |
| Aspiration | Turbocharged and Aftercooled |
| Alternator Brand | BOBIG |
| Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-274H |
| Rated Power | 200kW/250kVA |
| Protection Grade | IP23 |
| Insulation Class | H class |
| Voltage Regulation, Steady State | ≤±1% |
| Model Type | Length (mm) | Width (mm) | Height (mm) | Tank Capacity (L) |
|---|---|---|---|---|
| Open Type (BBDA275) | 2700 | 1050 | 1625 | 460 |

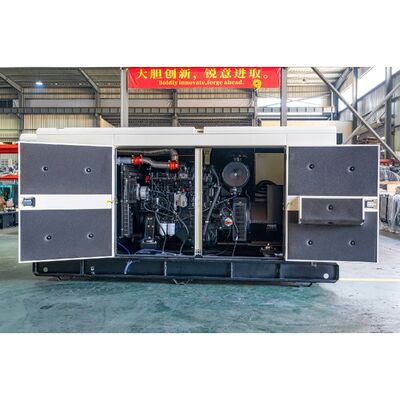

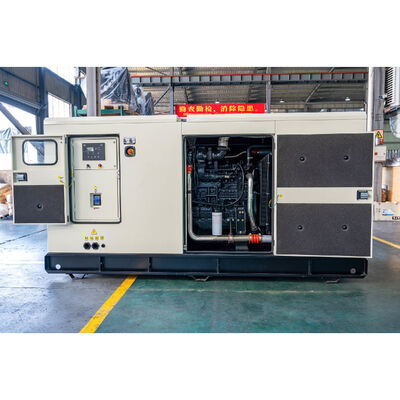

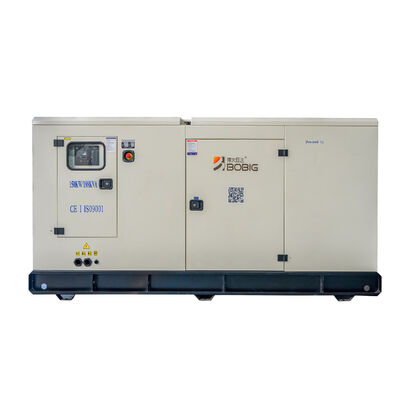

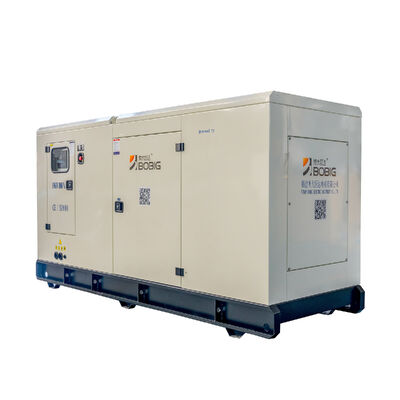

| Silent Type (BBDA275S) | 3900 | 1220 | 1900 | 460 |
Our generator complies with ISO 8528-5:2018, GB/T2820.5-2009, and CE certifications, guaranteeing quality, safety, and reliability.
Plywood case packaging. Delivery within 10-15 working days after receiving customer deposit.
One year or 1000 hours warranty (whichever comes first). Professional 24/7 after-sales support with technical assistance, maintenance, and repair services.
