| Parameter | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 330 | 363 |
| Power Rating (kW) | 264 | 290 |
| Frequency (Hz) | 50 | |
| Engine Model | 6M16G350/5 | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |

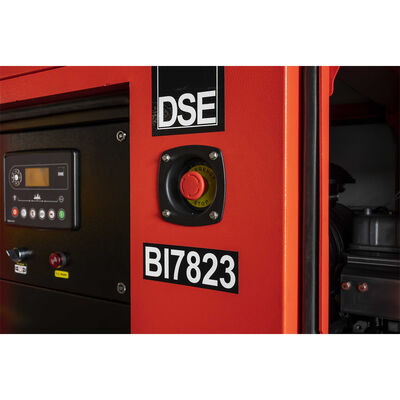

| Control System | Digital | |
| Rated Voltage (V) | 400/230 (According to customer requirements) | |
| Fuel Tank Capacity Operating Time | ≥ 8h @ 75% load | |
| Engine Model & Manufacturer | 6M16G350/5 (BAUDOUIN) |
| N° of Cylinders / Valves | 6/24 |
| Cylinders Arrangement | In line |
| Bore x Stroke (mm) | 126 x 130 |
| Displacement (L) | 9.726 |
| Thermodynamic Cycle | Diesel 4 stroke |
| Firing Order | 1-5-3-6-2-4 |
| Mean Piston Speed (m/s) | 6.5 |
| BMEP @ ESP (Bar) | 26.32 |
| Cooling System | Liquid (water + 50% antifreeze) |
| Injection System | Direct |
| Fuel System | Mechanical Pump |
| Aspiration | Turbocharged and Aftercooled |
| Compression Ratio | 17:1 |
| Flywheel Housing | SAE 1 |
| Flywheel | 14" |
| Rotation Viewed from Flywheel | Counter Clockwise |
| Allowed Static Bending Moment | 10800 |
| N° of Teeth on Flywheel Ring Gear | 136 |
| Inertia of Flywheel (kg•m²) | 1.84 |
| Inertia of Crankshaft (kg•m²) | 0.39 |
| Emission Standard | N/A |
| Overall Dimensions with Radiator (mm) | 1982 x 1082 x 1310 |
| Engine Dry Weight without Radiator (kg) | 880 |
| Engine Dry Weight with Radiator (kg) | 1021 |
| Engine Wet Weight with Radiator (kg) | 1092 |
| Alternator Brand | BOBIG |
| Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-314D |
| Rated Power | 264kW/330kVA |
| Rated Voltage (V) | 230V/400V |
| Rated Frequency | 50Hz |
| Connecting Type | 3 Phase and 4 W |
| Number of Bearing | 1 |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper |
| Insulation Class | H class |
| Telephone Influence Factor (TIF) | ≤50 |
| THF | ≤2% |
| Voltage Regulation, Steady State | ≤±1% |
| Transient State Voltage | ≤-15%~+20% |

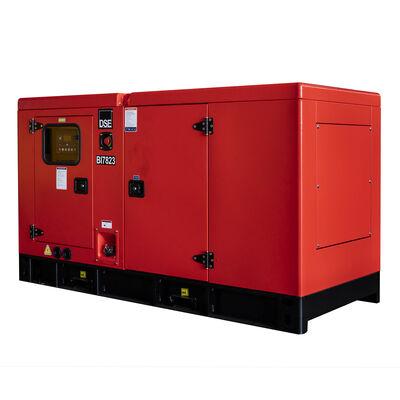

| Model | BBDA363 (Open type) | BBDA363S (Silent type) |
|---|---|---|
| Length (mm) | 2850 | 4200 |
| Width (mm) | 1050 | 1600 |
| Height (mm) | 1645 | 2250 |
| Tank Capacity (L) | 607 | 607 |
