600kW 750KVA Water-cooled Diesel Generator Set
Model: KTA38-G2 - Reliable Power Solution for Industrial, Commercial, and Residential Applications
Product Overview
Our 600kW 750KVA BOBIG CUMMINS diesel generator (Model: KTA38-G2) is engineered to deliver reliable power for diverse applications. Backed by the renowned CUMMINS brand, it offers superior performance and long-term durability.
Key Features
Power Performance
- Rated Power: 600kW (750KVA) for industrial, commercial, and residential applications
- Stable and efficient prime power output for continuous operation under heavy loads
- Standard frequency: 50Hz (suitable for most electrical equipment)
Engine Excellence
- Engine Model: KTA38-G2 CUMMINS engine with advanced technology
- High torque, fuel efficiency, and low emissions
- Engine Speed: 1500 RPM for smooth, consistent power supply
Technical Specifications
Power Ratings
| General Information | Prime Power | Standby Power |
|---|
| Rated Power (kVA) | 750 | 825 |
| Power Rating (kW) | 600 | 660 |
| Frequency (Hz) | 50 |
| Engine Model | KTA38-G2 |
| Engine Speed (RPM) | 1500 |
| Phase | 3 |
| PF | 0.8 |
| Control System | Digital |
| Rated Voltage (V) | 400/230 (customizable) |
| Fuel Tank Capacity Operating Time | ≥ 8h @ 75% load |
Dimensions and Weight
| Model | BC825 (Open Type) | BC825S (Silent Type) |
|---|
| Length (L) mm | 4300 | 5600 |
| Width (W) mm | 1750 | 2200 |
| Height (H) mm | 3125 | 2500 |
| Tank Capacity (L) | 1380 | 1380 |
Engine Specifications
| Engine Model & Manufacturer | KTA38-G2 (Cummins) |
| Number of Cylinders | 12 |
| Cylinder Arrangement | In-line |
| Cycle | Four Stroke |
| Aspiration | Turbocharged, Aftercooled |
| Bore x Stroke | 159 x 159 mm |
| Displacement | 38 L |
| Compression Ratio | 14.5:1 |
| Fuel System | Cummins PT |
| Cooling System | Force Water Cooling Cycle |
| Total Lubrication System Capacity | 40 L |
| Coolant Capacity (engine only) | 32.7 L |
| Fuel Consumption @ 100% load | 214 g/kWh @1500 rpm |
Alternator Specifications
| Alternator Brand | BOBIG |
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-354FS |
| Alternator Rated Power | 600kW/750kVA |
| Rated Voltage | 230V/400V |
| Rated Frequency | 50Hz |
| Connecting Type | 3 Phase and 4 W |
| Protection Grade | IP23 |
| Exciter Type | Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper |
| Insulation Class | H class |
| Voltage Regulation, Steady State | ≤±1% |
Environmental Adaptability
- Ambient Temperature: Operates effectively from +5°C to +40°C
- Altitude: Suitable for use up to 1000m (custom solutions available for different conditions)
Compliance Standards
Our generator complies with international standards including ISO 8528-5:2018, GB/T2820.5-2009, and CE certification, ensuring quality, safety, and reliability.
Customization & Options
We support customization and OEM services with design drawings. All units can be equipped with original power supplies and standard DSE 6120 controller. Engine, generator, and controller options are available.

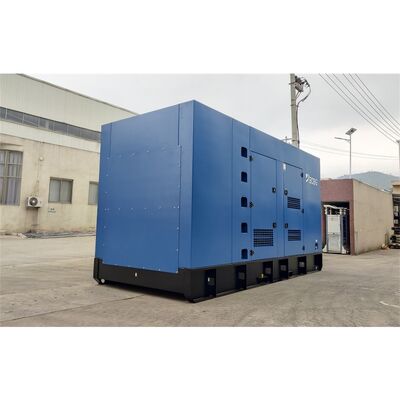

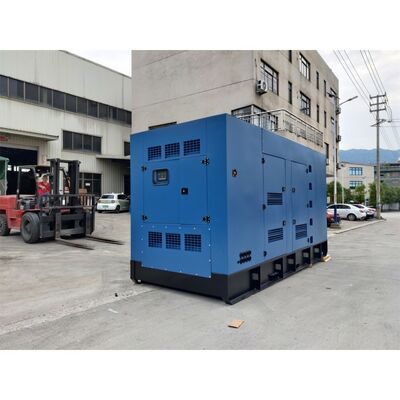

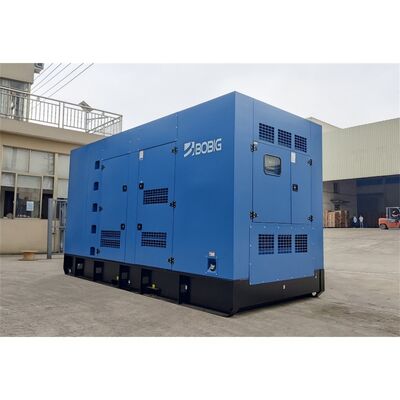

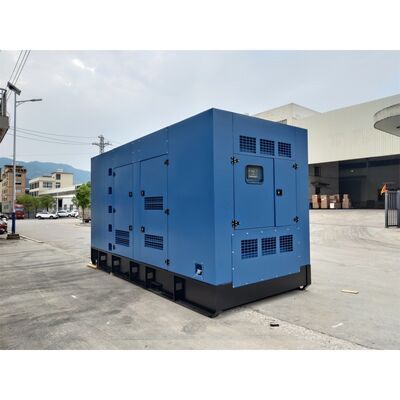

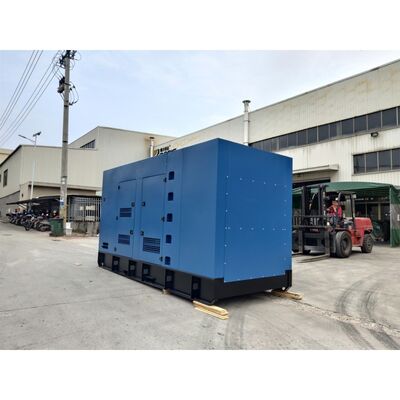

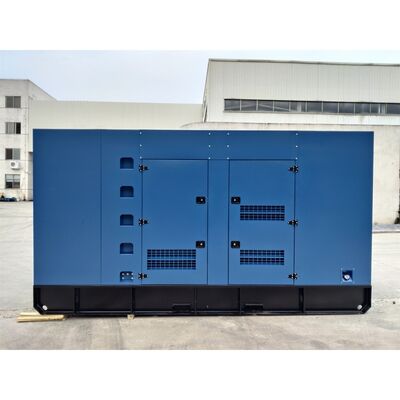

Product Image
Certifications
Applications
- Industrial Use: Backup power for factories to ensure continuous production during outages
- Commercial Buildings: Power for office buildings, shopping malls, and hotels to maintain essential services
- Residential Areas: Reliable power for communities with unstable power grids
Warranty & Service
BOBIG products include a one-year or 1000-hour warranty (whichever comes first). During warranty, we provide free replacement of defective parts. Our professional after-sales service team offers 24/7 technical support, maintenance, and repair services.
Why Choose BOBIG
- Brand Reputation: Cummins is a trusted brand with a long history of quality products
- Quality Assurance: Manufactured to international standards with rigorous quality inspections
- Customization Options: Tailored solutions based on specific requirements
Packaging & Shipping
Plywood case packaging. Delivery within 10-15 working days after receiving customer deposit.
Company Information
We are an electrical machinery manufacturer with 10,000 square meters of factory area, including 1,000sqm standard construction. With 160 employees (20 technicians), we produce gasoline generators, diesel generators (5-2000kVA), gas generators, and pumps. Our company holds ISO9000 Quality System Certification.
