| General Information | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 563 | 619 |
| Power Rating (kW) | 450 | 495 |
| Frequency (Hz) | 50 | |
| Engine Model | KTA19-G8E | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |

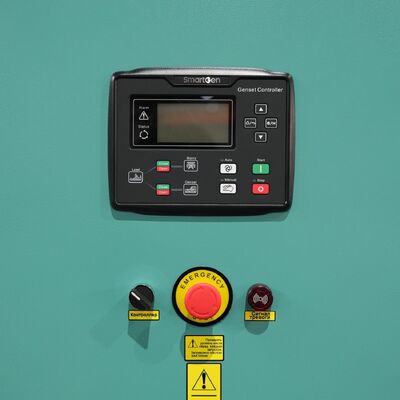

| Control System | Digital | |
| Rated Voltage (V) | 400/230 (Customizable) | |
| Fuel Tank Capacity Operating Time | ≥ 8h @ 75% load | |
| Model | BC633 (Open Type) | BC633S (Silent Type) |
|---|---|---|
| Length (mm) | 3600 | 5000 |
| Width (mm) | 1500 | 2000 |
| Height (mm) | 2460 | 2400 |
| Tank Capacity (L) | 1058 | 1058 |
| Engine Model & Manufacturer | KTA19-G8E (Cummin s) |
| Number of Cylinders | 6 |
| Cylinder Arrangement | In-line |
| Cycle | Four Stroke |
| Aspiration | Turbocharged, Aftercooled |
| Bore x Stroke | 159 x 159 mm |
| Displacement | 19 L |
| Compression Ratio | 13.9:1 |
| Fuel System | Cummin s PT |
| Cooling System | Force Water Cooling Cycle |
| Alternator Brand | BOBIG |
| Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-354DS |
| Alternator Rated Power | 450kw/563kva |
| Rated Voltage | 230v/400v |
| Rated Frequency | 50hz |
| Connecting Type | 3 Phase and 4 W |
| Protection Grade | IP23 |
| Insulation Class | H class |
