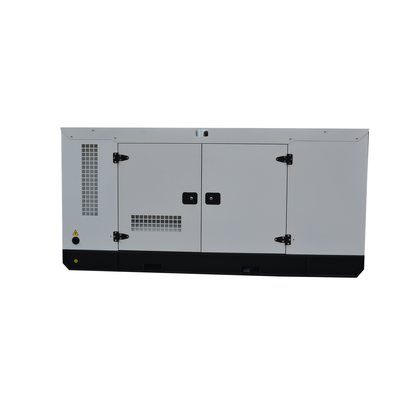

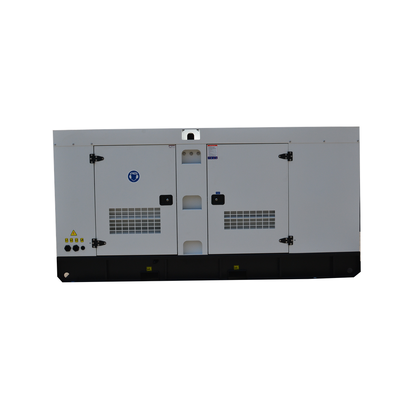

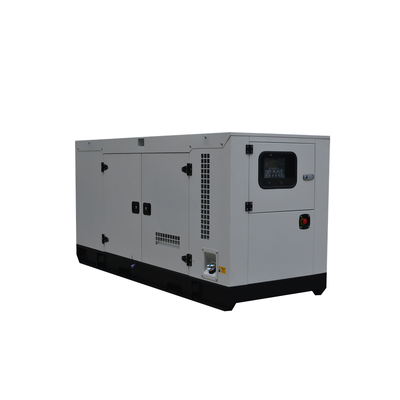

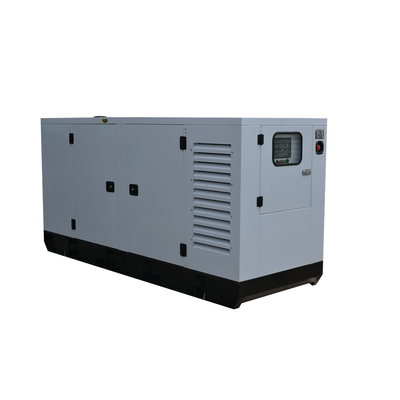

Our 250kW 313KVA BOBIG CUMMIN S diesel generator (Model: NTA855-G1B) delivers reliable power for industrial, commercial, and residential applications. Built with the renowned CUMMIN S engine, it offers high-quality performance and long-term durability.
| General Information | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 313 | 344 |
| Power Rating (kW) | 250 | 275 |
| Frequency (Hz) | 50 | |
| Engine Model | NTA855-G1B | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |
| Control System | Digital | |
| Rated Voltage (V) | 400/230 (Customizable) | |
| Fuel Tank Capacity | ≥ 8h @ 75% load | |
| Model | BC344 (Open) | BC344S (Silent) |
|---|---|---|
| Length (mm) | 3050 | 4200 |
| Width (mm) | 1140 | 1500 |
| Height (mm) | 1880 | 2100 |
| Tank Capacity (L) | 575 | 575 |
| Engine Model & Manufacturer | NTA855-G1B (Cummins) |
| Number of Cylinders | 6 |
| Cylinder Arrangement | In-line |
| Cycle | Four Stroke |
| Aspiration | Turbocharged & Aftercooled |
| Bore x Stroke | 140 x 152 mm |
| Displacement | 14 L |
| Compression Ratio | 14.0:1 |
| Prime Power/Speed | 284 kW/1500 rpm |
| Standby Power/Speed | 316 kW/1500 rpm |
| Fuel System | PT |
| Cooling System | Force Water Cooling Cycle |
| Alternator Brand | BOBIG |
| Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-314DS |
| Rated Power | 250kW/313kVA |
| Rated Voltage | 230V/400V |
| Rated Frequency | 50Hz |
| Connecting Type | 3 Phase and 4 W |
| Protection Grade | IP23 |
| Insulation Class | H class |
Complies with ISO 8528-5:2018, GB/T2820.5-2009, and CE certifications ensuring quality, safety, and reliability.
Plywood case packaging. Delivery within 10-15 working days after receiving deposit.
