| General Information | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 275 | 303 |
| Power Rating (kW) | 220 | 242 |
| Frequency (Hz) | 50 | |
| Engine Model | 6LTAA9.5-G3 | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |
| Control System | Digital | |
| Rated Voltage (V) | 400/230 (Customizable) | |
| Fuel Tank Capacity Operating Time | ≥ 8h @ 75% load | |

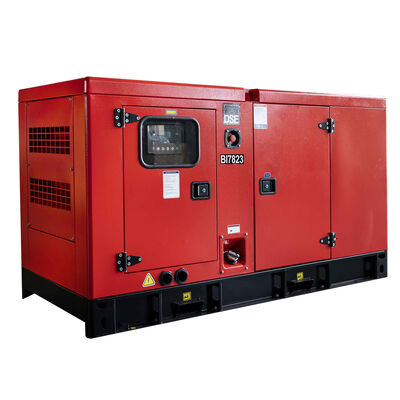

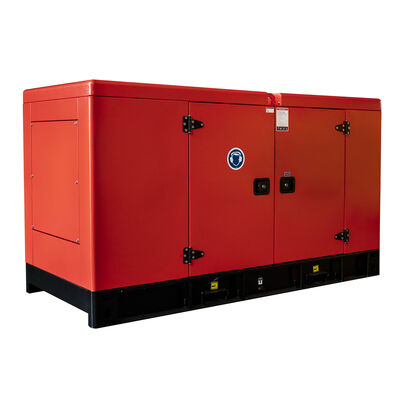

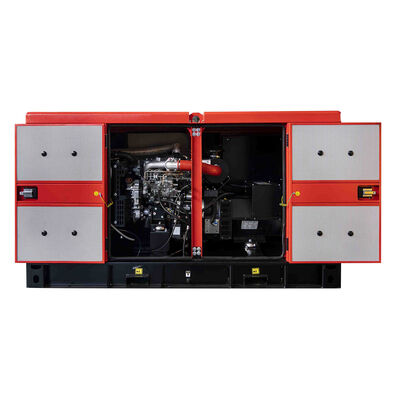

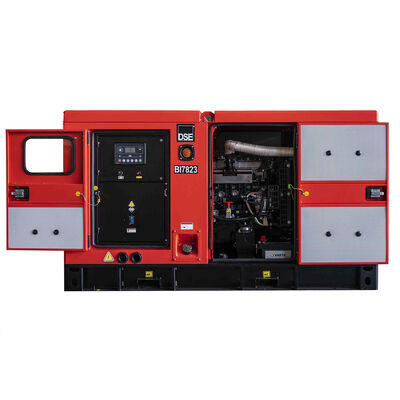

| Model | BC303 (Open Type) | BC303S (Silent Type) |
|---|---|---|
| Length (mm) | 2850 | 3950 |
| Width (mm) | 1110 | 1400 |
| Height (mm) | 2100 | 1950 |
| Tank Capacity (L) | 506 | 506 |
| Engine Model & Manufacturer | 6LTAA9.5-G3 (Cummins) |
| Number of Cylinders | 6 |
| Cylinder Arrangement | In-line |
| Cycle | Four Stroke |
| Aspiration | Turbocharged & Charge Air Cooled |
| Bore x Stroke | 116.5 x 148 mm |
| Displacement | 9.5 L |
| Compression Ratio | 16.6:1 |
| Prime Power/Speed | 250 kW/1500 rpm |
| Standby Power/Speed | 278 kW/1500 rpm |
| Fuel System | Mechanical fuel pump and Electronic Governor |
| Cooling System | Force Water Cooling Cycle |
| Alternator Brand | BOBIG |
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-314CS |
| Alternator Rated Power | 220kw/275kva |
| Rated Voltage | 230v/400v |
| Rated Frequency | 50hz |
| Connecting Type | 3 Phase and 4 W |
| Protection Grade | IP23 |
| Insulation Class | H class |
