182kW Super Silent Diesel Generator Set Cummin s Powerd by 227KVA Water Cooled Soundproof Power Genset for Sale

182kW Super Silent Diesel Generator Set Cummin s Powerd by 227KVA  Water Cooled Soundproof Power Genset for Sale
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
덮개: 맞춤형
보증: 12개월/1000시간
유형: 사일런트(슈퍼 사일런트) 또는 개방형, 사일런트 등, 인라인/6기통/4행정/4밸브/19L, 방음 캐노피(사일런트)
제어판: LCD 디지털 디스플레이, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
출력 유형: AC 단상/3상
제어 장치: 심해/스마트젠/기타
애플리케이션: 산업 은행 등
정격전압: 400/230V, 110-480V, 220V/380V, 110V/240V, 380V
교류기: 마라톤, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford 또는 Newtec, Engga
제품명: 디젤 발전기, 발전기 227KVA, CUMMIN S 디젤 발전기로 구동, 대기 사용 전력 디젤 발전기 182kW
색상: 고객의 요구 사항
빈도: 50/60HZ
정격 출력: 182 kw
엔진: 오리지널 CUMMIN S
냉각 방식: 수냉식 시스템
강조하다:

182kW Cummins diesel generator set

,

227KVA water cooled genset

,

super silent soundproof power generator

기본 정보
원래 장소: 중국
브랜드 이름: CUMMIN S
인증: CE
모델 번호: 6CTAA8.3-G9
결제 및 배송 조건
포장 세부 사항: 버블 랩
배달 시간: 30일
공급 능력: 달 당 500pcs
제품 설명

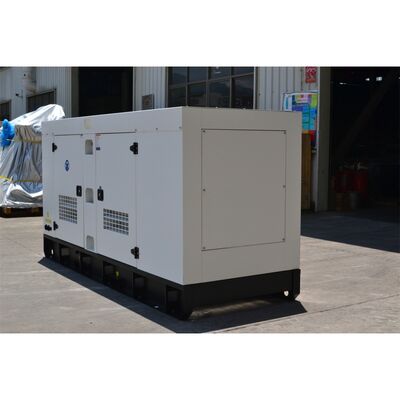

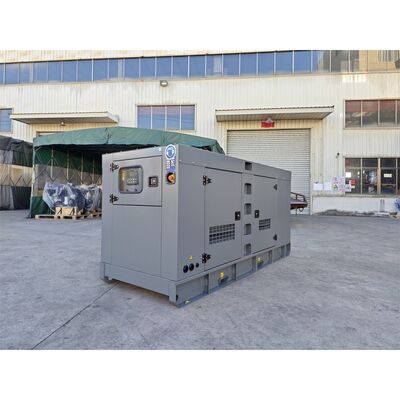

182kW Super Silent Diesel Generator Set
Cummins Powered 227KVA Water Cooled Soundproof Power Genset
Product Overview
Our 182kW 227KVA BOBIG CUMMINS diesel generator (Model: 6CTAA8.3-G9) is engineered to deliver reliable power for diverse applications. Backed by the renowned Cummins brand, it offers superior performance and long-term durability.
Key Features
Power Performance
  • Rated Power: 182kW (227KVA) for industrial, commercial, and residential applications
  • Stable prime power output ensures continuous operation under heavy loads
  • Standard frequency: 50Hz, compatible with most electrical equipment
Engine Excellence
  • Powered by 6CTAA8.3-G9 Cummins engine with advanced technology
  • High torque, fuel efficiency, and low emissions
  • Engine speed: 1500 RPM for smooth, consistent power supply
Technical Specifications
General InformationPrime PowerStandby Power
Rated Power (kVA)227250
Power Rating (kW)182200
Frequency (Hz)50
Engine Model6CTAA8.3-G9
Engine Speed (RPM)1500
Phase3
PF0.8
Control SystemDigital
Rated Voltage (V)400/230 (Customizable)
Fuel Tank Capacity Operating Time≥ 8h @ 75% load
PRP: Prime power available for unlimited annual hours in variable load applications per GB/T2820-97 standards. 10% overload capability available for 1 hour within 12-hour operation.
ESP: Standby power rating for emergency power supply during utility interruptions. No overload, utility parallel, or negotiated outage operation capability.
Dimensions and Weight
ModelBC250 (Open Type)BC250S (Silent Type)
Length (mm)25703500
Width (mm)9501220
Height (mm)18501950
Tank Capacity (L)419419
Engine Specifications
Engine Model & Manufacturer6CTAA8.3-G9 (Cummins)
Number of Cylinders6
Cylinder ArrangementIn-line
CycleFour Stroke
AspirationTurbocharged & Air-Air Intercooler
Bore x Stroke114 x 135 mm
Displacement8.3 L
Compression Ratio16.7:1
Prime Power/Speed200 kW/1500 rpm
Standby Power/Speed220 kW/1500 rpm
Fuel SystemBYC P7100 Pump / Electronic Governor
Cooling SystemForce Water Cooling Cycle
Frequency Droop≤ 5%
Total Lubrication System Capacity23.8 L
Coolant Capacity (Engine Only)12.3 L
Fuel Consumption (100% Load)204 g/kWh @1500 rpm
Starter MotorDC 24V
Charge AlternatorDC 24V
Alternator Specifications
Alternator BrandBOBIG
Alternator ManufacturerFUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator ModelBW-274K
Alternator Rated Power182kw/227kva
Rated Voltage (V)230v/400v
Rated Frequency50hz
Connecting Type3 Phase and 4 W
Number of Bearing1
Protection GradeIP23
Altitude≤1000m
Exciter TypeBrushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation ClassH class
Telephone Influence Factor (TIF)≤50
THF≤2%
Voltage Regulation, Steady State≤±1%
Transient State Voltage≤-15%~+20%
Environmental Adaptability
  • Ambient Temperature: +5°C to +40°C operating range
  • Altitude: Suitable for use up to 1000m
  • Customized solutions available for different environmental conditions
Compliance Standards
Our generator complies with international standards including ISO 8528-5:2018, GB/T2820.5-2009, and CE certification, ensuring quality, safety, and reliability.
Customization & OEM Services
We support customization and OEM services with design drawings. All units feature original power supplies and standard DSE 6120 controller (engine, generator, and controller options available).
Applications
  • Industrial Use: Backup power for factories ensuring continuous production during outages
  • Commercial Buildings: Power for offices, shopping malls, and hotels maintaining essential services
  • Residential Areas: Reliable power for communities with unstable power grids
Warranty & Service
BOBIG products include a one-year or 1000-hour warranty (whichever comes first). During warranty, we provide free replacement of easy-damageable spare parts caused by production or material quality issues. Professional after-sales support available 24/7.
Packaging & Shipping
Plywood case packaging. Delivery within 10-15 working days after receiving customer deposit.
Why Choose BOBIG
  • Brand Reputation: Cummins is a trusted brand with proven reliability
  • Quality Assurance: Manufactured to international standards with rigorous inspections
  • Customization Options: Tailored solutions for specific requirements
  • Technical Support: Professional team providing comprehensive service
Frequently Asked Questions
What is your MOQ, payment method, and delivery time?
MOQ: 1 set. Payment: 30% T/T deposit, 70% balance before delivery. Alternative: 100% L/C, Trade Assurance, PayPal, Western Union. Delivery: 10-15 working days after deposit.
Which port do you use for export?
Fuzhou port, Fujian province or as customer requested.
Do you provide spare parts for maintenance?
Yes, we provide regular engine filters (air, water, fuel, oil) for customer self-maintenance.
Can you offer parts if needed?
Yes, we can supply parts at any time, typically shipped within 3-5 days.
Can you customize voltage, frequency, tank capacity, phase, and color?
Yes, all specifications can be customized according to your needs.
What is your distribution policy?
We welcome distributors worldwide and can issue authority certificates and sign agreements accordingly.
