| Parameter | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 313 | 344 |
| Power Rating (kW) | 250 | 275 |
| Frequency (Hz) | 50 | |
| Engine Model | P126TI-II | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| Power Factor (PF) | 0.8 | |
| Control System | Digital | |
| Rated Voltage (V) | 400/230 | |
| Fuel Tank Capacity Operating Time | ≥ 8h @ 75% load | |

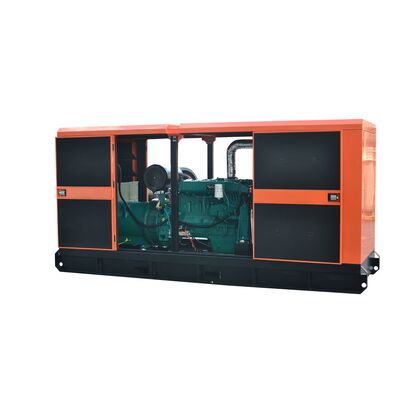

| Model | BDO344 (Open Type) | BDO344S (Silent Type) |
|---|---|---|
| Length (L) mm | 3100 | 3900 |
| Width (W) mm | 1050 | 1400 |
| Height (H) mm | 2100 | 1950 |
| Tank Capacity (L) | 575 | 575 |
| Engine Model & Manufacturer | P126TI-II (DOOSAN) |
| Engine Type | Diesel, water cooled, Turbo charged & intercooled |
| Bore x Stroke | 123 × 155mm |
| Displacement | 11 liters |
| Cylinders and Arrangement | Cast iron, 6 cylinder, In-line Type |
| Battery Charging Alternator | 28.5V × 45A alternator |
| Starting Voltage | 24V |
| Fuel System | Mechanical Injection Pump |
| Fuel Filter | Full flow, cartridge type with water drain valve |
| Lube Oil Filter Type | Full flow, cartridge type |
| Lube Oil Capacity | Max. 23 liters, Min. 20 liters |
| Flywheel Dimensions | Clutch No. 14 M |
| Dry Weight | 950kg (engine only) |
| Dimension (L×W×H) | 1389 × 1389 × 1216 mm |
| Alternator Brand | BOBIG |
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-314DS |
| Alternator Rated Power | 250kW/313kVA |
| Rated Voltage (V) | 230V/400V |
| Rated Frequency | 50Hz |
| Connecting Type | 3 Phase and 4 Wire |
| Number of Bearings | 1 |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper |
| Insulation Class | H class |
| Telephone Influence Factor (TIF) | ≤50 |
| THF | ≤2% |
| Voltage Regulation, Steady State | ≤±1% |
| Transient State Voltage | ≤-15%~+20% |
| Engine | Alternator | Fuel System | Generating Set |
|---|---|---|---|
| Water Jacket Preheater | PMG excitation | 12/24 hour base tank | Deepsea, ComAp, Smartgen controllers |
| Oil Preheater | Space heater | Bunded fuel tank | Trailer |
| Oil manual pump | Winding temperature measuring | External fuel tank | Tools with the machine |
| Automatic fuel feeding | |||
| Switch between external tank and base tank |
