| General Information | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 750 | 825 |
| Power Rating (kW) | 600 | 660 |
| Frequency (Hz) | 50 | |
| Engine Model | DP222LC | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |
| Control System | Digital | |
| Rated Voltage (V) | 400/230 (customizable) | |
| Fuel Tank Capacity Operating Time | ≥ 8h @ 75% load | |

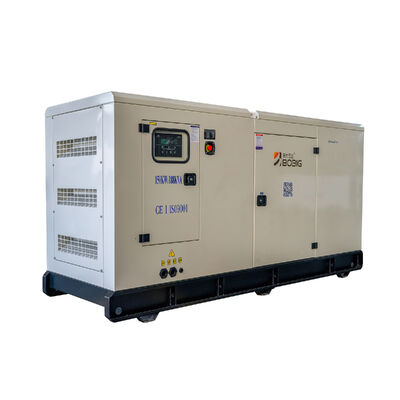

| Model | BDO825 (Open Type) | BDO825S (Silent Type) |
|---|---|---|
| Length (mm) | 4500 | 5600 |
| Width (mm) | 1800 | 2200 |
| Height (mm) | 2745 | 2550 |
| Tank Capacity (L) | 1380 | 1380 |
| Engine Model & Manufacturer | DP222LC (DOOSAN) |
| Engine Type | Diesel, water cooled, Turbo charged & intercooled |
| Bore x Stroke | 128×142mm |
| Displacement | 21.9 liters |
| Cylinders and Arrangement | Cast iron, 12 cylinder, Vee-Type |
| Battery Charging Alternator | 27.5V x 45A alternator |
| Starting Voltage | 24V |
| Fuel System | Mechanical Injection Pump |
| Fuel Filter | Full flow, cartridge type with water drain valve |
| Lube Oil Filter Type | Full flow, cartridge type |
| Lube Oil Capacity | Max. 40 liters, Min. 27 liters |
| Flywheel Dimensions | Clutch No. 14 M |
| Dry Weight | 1420kg (engine only) |
| Dimension (LxWxH) | 1738 × 1389 × 1258 mm |
| Alternator Brand | BOBIG |
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-354FS |
| Alternator Rated Power | 600kw/750kva |
| Rated Voltage | 230v/400v |
| Rated Frequency | 50hz |
| Connecting Type | 3 Phase and 4 W |
| Number of Bearing | 1 |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper |
| Insulation Class | H class |
| Telephone Influence Factor (TIF) | ≤50 |
| THF | ≤2% |
| Voltage Regulation, Steady State | ≤±1% |
| Transient State Voltage | ≤-15%~+20% |
