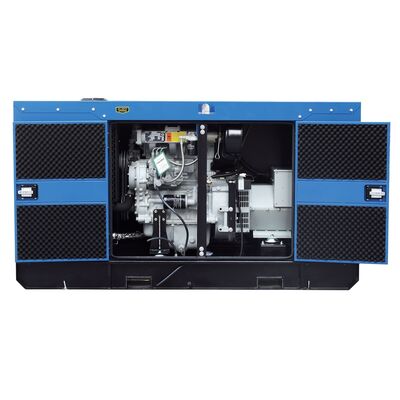

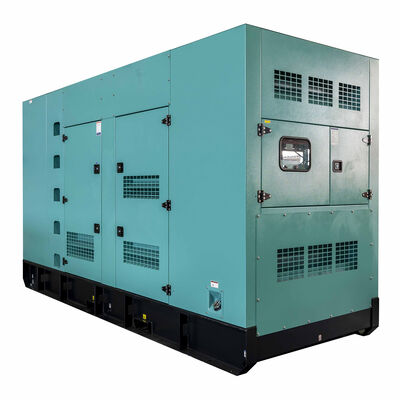

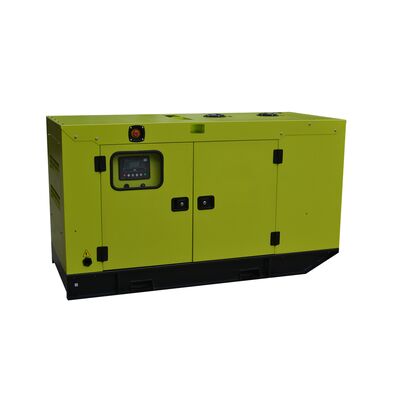

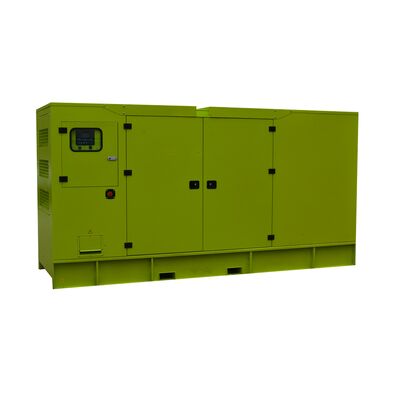

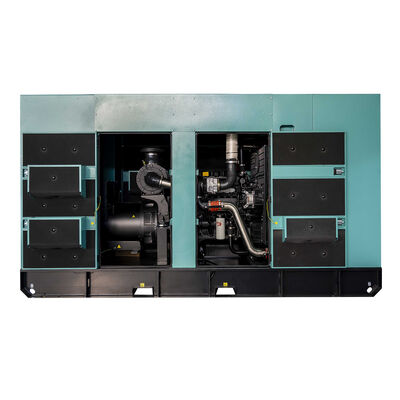

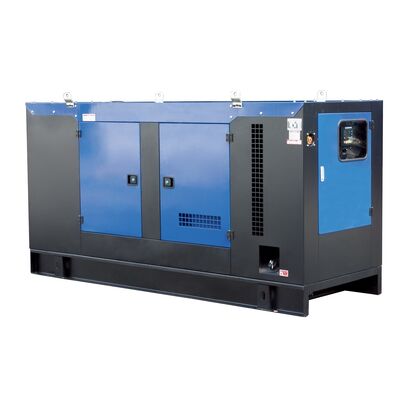

High quality water cooling DOOSAN diesel generator available in both open and silent configurations to meet diverse operational requirements.
| General Information | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 813 | 894 |
| Power Rating (kW) | 650 | 715 |
| Frequency (Hz) | 50 | |
| Engine Model | DP222CB | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |
| Control System | Digital | |
| Rated Voltage (V) | 400/230 (According to customer requirements) | |
| Fuel Tank Capacity Operating Time | ≥ 8h @ 75% load | |
PRP (Prime Power): Available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.
ESP (Standby Power): Applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
| Dimension and Weight | Open Type | Silent Type |
|---|---|---|
| Model | BDO839 | BDO839S |
| Length (L) mm | 4500 | 5600 |
| Width (W) mm | 1800 | 2200 |
| Height (H) mm | 2745 | 2550 |
| Tank Capacity (L) | 1403 | 1403 |
| Engine Model & Manufacturer | DP222CB(DOOSAN) |
|---|---|
| Engine Type | 4-Cycle, V-Type, 12-Cylinder Diesel, water cooled, Turbo charged & intercooled |
| Bore x Stroke | 128 x 142 mm |
| Displacement | 21.927 liters |
| Compression Ratio | 14.6 : 1 |
| Rotation | Counter clockwise viewed from flywheel |
| Firing Order | 1-12-5-8-3-10-6-7-2-11-4-9 |
| Dry Weight | 1,676 Kg (W/O Fan) |
| Dimension (LxWxH) | 1,658 x 1,593 x 1,701 mm |
| Speed Drop | G3 Class (KS R ISO 8528-5) |
| Injection Timing | Controlled by ECU |
| Flywheel Housing | SAE NO.0 (18 Inch.) |
| Flywheel | Clutch NO.18M |
| Number of Teeth on Flywheel Ring Gear | 117 |
