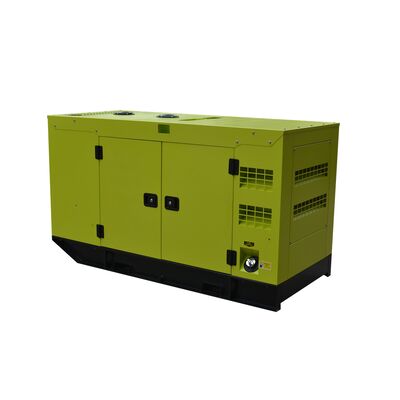

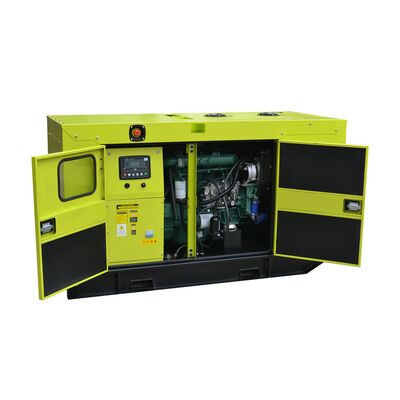

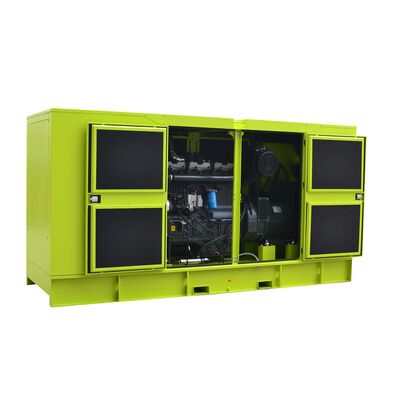

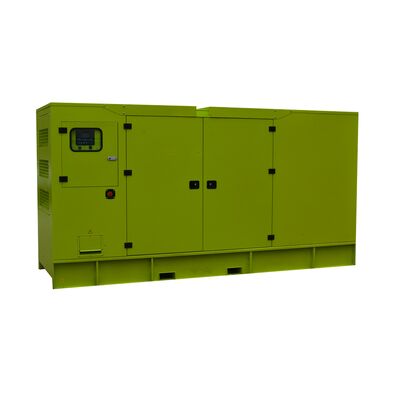

Silent Type 250KW 313KVA Diesel Generator Set Powered by YTO YM6S9L-D Engine OEM Price Generator
Our YTO YM6S9L-D Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned YTO engine, this 250kw unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. It is the perfect power source for construction, industrial, commercial, and emergency backup use.
| General information | Prime power | Standby power | |||||||
| Rated Power (kVA) | 313 | 334 | |||||||
| Power Rating (kW) | 250 | 275 | |||||||
| Frequency (Hz) | 50 | ||||||||
| Engine Model | YM6S9L-D | ||||||||
| Engine Speed (RPM) | 1500 | ||||||||
| Phase | 3 | ||||||||
| PF | 0.8 | ||||||||
| Control System | Digital | ||||||||
| Rated voltage (V) | 400/230 (According to customer requirements) |
||||||||
| Fuel tank capacity operating time | ≥ 8h @ 75% load | ||||||||
| PRP Prime power is available for an unlimited number of annual hours in variable load application,in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation | |||||||||
| ESP The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption.No overload,utility parallel or negotiated outage operation capability is available at this ratin | |||||||||
| Dimension and Weight | |||||||||
| Model | BYT344 Open type |
BYT344S Silent type |
|||||||
| Length (L) mm | 3100 | 4000 | |||||||
| Width (W) mm | 1050 | 1400 | |||||||
| Height (H) mm | 2250 | 2150 | |||||||
| Tank capacity (L) | 575 | 575 | |||||||
| Engine model & manufacturer | YM6S9L-D(YTO) | |||||||||||||
| Engine Model | YM6S9L-D | |||||||||||||
| No. of cylinders | 6 | |||||||||||||
| Cylinder arrangement | In-line | |||||||||||||
| Cycle | 4 stroke,compression ignition | |||||||||||||
| Method of air aspiration | Turbocharged with air to air cooler | |||||||||||||
| Cooling medium | Liquid | |||||||||||||
| Bore | 126 mm | |||||||||||||
| Stroke | 155 mm | |||||||||||||
| Compression ratio | 17.0:1 | |||||||||||||
| Cubic capacity | 11.596 L | |||||||||||||
| Dry engine weight | 1100 kg | |||||||||||||
| Dimension(L*W*H) | 1229*1813*965 | |||||||||||||
| Direction of rotation | Anti - clockwise viewed on flywheel | |||||||||||||
| Governed Engine Speed | 1500 | |||||||||||||
| Firing order | 1-5-3-6-2-4 (1cyl furthest from flywheel ) | |||||||||||||
| Standby Power | 322 | |||||||||||||
| Adaptive power station (kw) | 290 | |||||||||||||
| Steady state speed stability at constant load | ≤3% | |||||||||||||
| Alternator | ||||||||||||||
| Alternator Brand | BOBIG | |||||||||||||
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD | |||||||||||||
| Alternator Model | BW-314DS | |||||||||||||
| Alternator Rated Power | 250kw/313kva | |||||||||||||
| Rated voltage (V) | 230v/400v | |||||||||||||
| Rated frequency | 50hz | |||||||||||||
| Connecting Type | 3 Phase and 4 W | |||||||||||||
| Number of Bearing | 1 | |||||||||||||
| Protection Grade | IP23 | |||||||||||||
| Altitude | ≤1000m | |||||||||||||
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper | |||||||||||||
| Insulation Class | H class | |||||||||||||
| Telephone Influence Factor (TIF) | ≤50 | |||||||||||||
| THF | ≤2% | |||||||||||||
| Voltage Regulation, Steady State | ≤±1% | |||||||||||||
| specific fuel consumption | ≤ 205g / kw.h | |||||||||||||
| Transient State Voltage | ≤-15%~+20% | |||||||||||||
| DSE 6120 | |||||||||||||
| Auto start and auto mains failure control module(Alternator frequency & can speed sensing) | |||||||||||||
| Key benefits •Automatically transfers betweenmains (utility) and generator (DSE6120 MKIII only) forconvenience. •Hours counter provides accurateinformation for monitoring andmaintenance periods •User-friendly set-up and buttonlayout for ease of use •Multiple parameters are monitored& displayed simultaneously for fullvisibility •The module can be configured tosuit a wide range of applications foruser flexibility •PLC editor allows user configurablefunctions to meet user specificapplication requirements. |
|||||||||||||
|
|||||||||||||
| Key features •4-line back-lit LCD text display •Multiple display languages •Five-key menu navigation •LCD alarm indication •Customisable power-up text andscreen images. •DSENet® expansion compatibility •Data logging facility •Internal PLC editor •Protections disable feature •Fully configurable via PC using USB communications •Front panel configuration withPIN protection •Power save mode •3-phase generator sensing andprotection •3-phase mains (utility) sensing andprotection (DSE6120 MKIII only) •Automatic load transfer control(DSE6120 MKIII only) •Generator current and powermonitoring (kW, kvar, kVA, pf) •Mains (utility) current and power monitoring (kW , kvar, kVA, pf)(DSE6120 MKIII only) •kW overload alarm •Over current protection •Breaker control via fascia buttons |
|||||||||||||
| •Fuel and start outputs configurablewhen using CAN •6 configurable DC outputs •4 configurable analogue/digitalinputs •Support for 0 V to 10 V & 4 mA to20 mA sensors •8 configurable digital inputs •CAN, MPU and alternatorfrequency speed sensing in onevariant •Real time clock •Manual and automatic fuel pumpcontrol •Engine pre-heat and post-heatfunctions •Engine run-time scheduler •Engine idle control for starting &stopping •Fuel level alarms •3 configurable maintenance alarms •Compatible with a wide range ofCAN engines, including Tier 4engine support •Uses DSE Configuration Suite PC Softwar e for simplifiedconfiguration •Licence-free PC software •IP65 rating (with optional gasket)offers increased resistance to wateringress •Configurable CAN read &transmitted information. •1 alternative configuration |
|||||||||||||
| Engine | Alternator | Fuel System | Generating Set | |||||||||||
| Water Jacket Preheater Oil Preheater Oil manual pump |
PMG excitation Space heater inding temperature measuring |
12 / 24 hour base tank Bunded fuel tank External fuel tank Automatic fuel feeding Switch between external tank and base tank (three-way valve) |
Deepsea, ComAp, Smartgen etc. controller Trailer Tools with the machine |
|||||||||||
