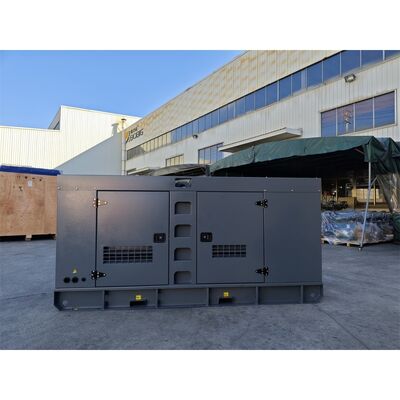

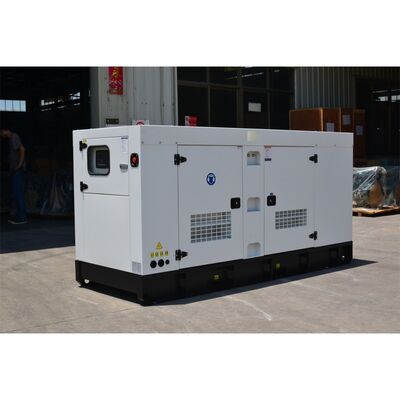

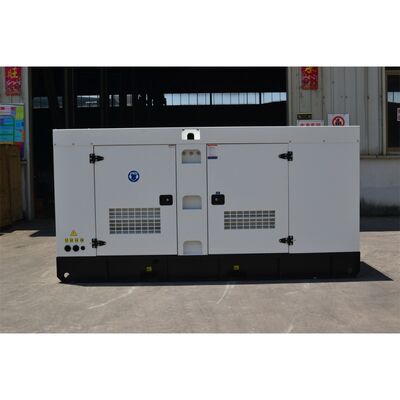

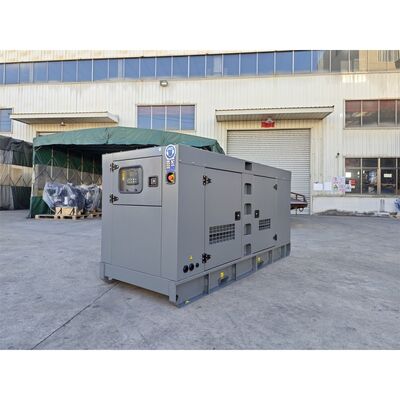

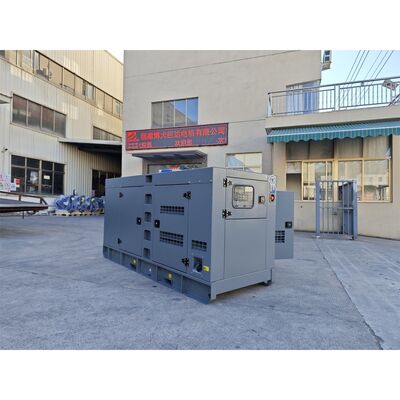

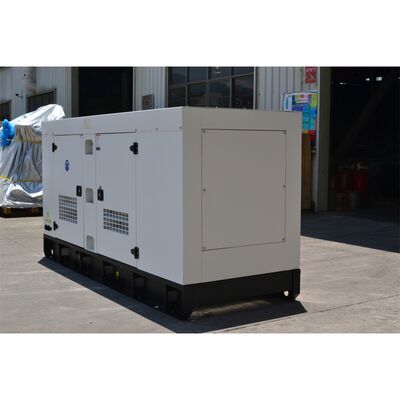

Our 440kW 550KVA BOBIG PERKINS diesel generator (Model: 2806C-E18TAG1A) is designed to provide reliable power for a wide range of applications. Backed by the renowned PERKINS brand, it offers high-quality performance and long-term durability.
| Parameter | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 550 | 605 |
| Power Rating (kW) | 440 | 484 |
| Frequency (Hz) | 50 | |
| Engine Model | 2806C-E18TAG1A | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |
| Control System | Digital | |
| Rated Voltage (V) | 400/230 (customizable) | |
| Fuel Tank Capacity | ≥ 8h @ 75% load | |
| Model | BP605 (Open Type) | BP605S (Silent Type) |
|---|---|---|
| Length (mm) | 3600 | 4500 |
| Width (mm) | 1500 | 1810 |
| Height (mm) | 2460 | 2360 |
| Tank Capacity (L) | 1012 | 1012 |
| Engine Model & Manufacturer | 2806C-E18TAG1A (PERKINS) |
| Number of Cylinders | 6 |
| Cylinder Arrangement | Vertical inline |
| Cycle | Four stroke |
| Aspiration | Turbocharged, air-to-air charge cooling |
| Bore x Stroke | 145 x 183 mm |
| Cubic Capacity | 18.13 L |
| Compression Ratio | 14.5:1 |
| Prime Power/Speed | 532 kW/1500 rpm |
| Standby Power/Speed | 568 kW/1500 rpm |
| Cooling System | Force Water Cooling Cycle |
| Lubrication System Capacity | 45 L |
| Coolant Capacity | 62 L |
| Alternator Brand | BOBIG |
| Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-354DS |
| Rated Power | 440kW/550kVA |
| Rated Voltage | 230V/400V |
| Rated Frequency | 50Hz |
| Protection Grade | IP23 |
| Insulation Class | H class |
| Voltage Regulation | ≤±1% (Steady State) |
Our generator complies with multiple international and national standards, including:
We support customization and OEM services with design drawings. All units come with standard DSE 6120 controller, with optional engines, generators, and controllers available.
BOBIG products come with a one-year or 1000-hour warranty (whichever comes first). During the warranty period, we provide free replacement of easy-damageable spare parts caused by production or material quality issues. After expiration, we offer cost-based spare parts maintenance with 24/7 technical support.
Plywood case packaging with delivery within 10-15 working days after receiving customer deposit.
