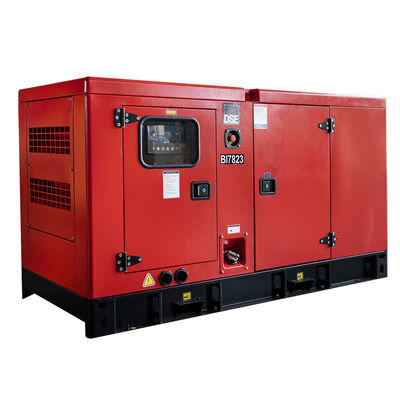

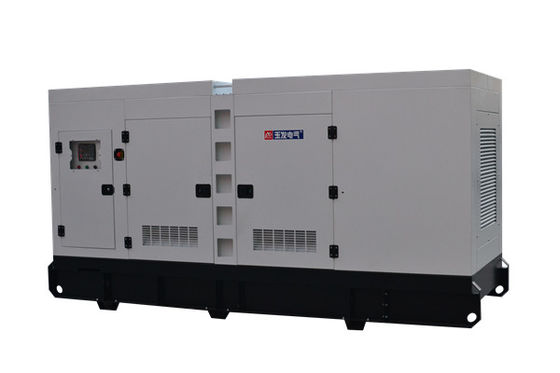

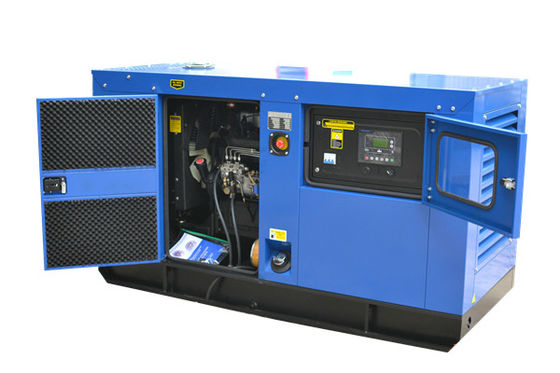

High quality water cooling DOOSAN diesel generator available in both open and silent configurations to meet diverse operational requirements.
| General Information | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 425 | 468 |
| Power Rating (kW) | 340 | 374 |
| Frequency (Hz) | 50 | |
| Engine Model | DP126CD | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |
| Control System | Digital | |
| Rated Voltage (V) | 400/230 | |
| Fuel Tank Capacity Operating Time | ≥ 8h @ 75% load | |
PRP (Prime Power): Available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.
ESP (Standby Power): Applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
| Model | BDO468 (Open Type) | BDO468S (Silent Type) |
|---|---|---|
| Length (L) mm | 3100 | 4050 |
| Width (W) mm | 1050 | 1510 |
| Height (H) mm | 2150 | 2050 |
| Tank Capacity (L) | 782 | 782 |
| Engine Model & Manufacturer | DP126CD (DOOSAN) |
| Engine Type | 4-Cycle, In-line, 6-Cylinder Diesel, water cooled, Turbo charged & intercooled |
| Bore x Stroke | 123 x 155 mm |
| Displacement | 11.051 liters |
| Compression Ratio | 16.5 : 1 |
| Rotation | Counter clockwise viewed from flywheel |
| Firing Order | 1-5-3-6-2-4 |
| Dry Weight | 1,058 kg |
| Dimension (LxWxH) | 1,411 x 1,133 x 1,323 mm |
| Fly Wheel Housing | SAE NO.1M |
| Fly Wheel | Clutch NO.14M |
| Number of Teeth on Flywheel | 106 |
| Alternator Brand | BOBIG |
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-354C |
| Alternator Rated Power | 340kw/425kva |
| Rated Voltage (V) | 230v/400v |
| Rated Frequency | 50hz |
| Connecting Type | 3 Phase and 4 W |
| Number of Bearing | 1 |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper |
| Insulation Class | H class |
| Telephone Influence Factor (TIF) | ≤50 |
| THF | ≤2% |
| Voltage Regulation, Steady State | ≤±1% |
| Transient State Voltage | ≤-15%～+20% |
