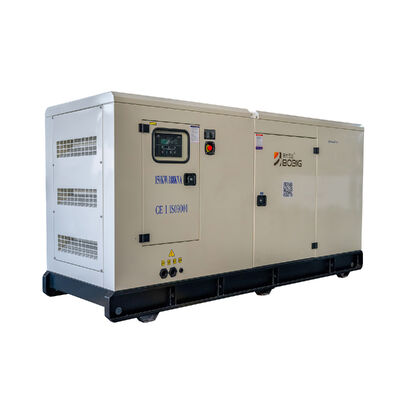

Our 200kW 250KVA BOBIG PERKINS diesel generator (Model: 1206A - E70TTAG3) is engineered to deliver reliable power for diverse applications. Backed by the renowned PERKINS brand, it offers superior performance and long-term durability.
Rated Power: 200kW (250KVA) for industrial, commercial, and residential applications
Frequency: 50Hz standard operation
Engine Model: 1206A - E70TTAG3 PERKINS engine
Engine Speed: 1500 RPM for smooth, consistent power
| General Information | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 250 | 275 |
| Power Rating (kW) | 200 | 220 |
| Frequency (Hz) | 50 | |
| Engine Model | 1206A-E70TTAG3 | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |
| Control System | Digital | |
| Rated Voltage (V) | 400/230 (Customizable) | |
| Fuel Tank Capacity | ≥ 8h @ 75% load | |
| Model | BP275 | BP275S |
|---|---|---|
| Type | Open | Silent |
| Length (mm) | 2600 | 3400 |
| Width (mm) | 1000 | 1250 |
| Height (mm) | 1850 | 1750 |
| Tank Capacity (L) | 460 | 460 |
| Engine Model & Manufacturer | 1206A-E70TTAG3 (PERKINS) |
| Number of Cylinders | 6 |
| Cylinder Arrangement | Vertical Inline |
| Cycle | Four Stroke |
| Aspiration | Twin Turbocharged, Aftercooled |
| Bore x Stroke | 105 x 135 mm |
| Cubic Capacity | 7.01 L |
| Compression Ratio | 15.8:1 |
| Prime Power/Speed | 217.4 kW/1500 rpm |
| Standby Power/Speed | 239.1 kW/1500 rpm |
| Alternator Brand | BOBIG |
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-274K |
| Alternator Rated Power | 200kw/250kva |
| Rated Voltage | 230v/400v |
| Rated Frequency | 50hz |
| Protection Grade | IP23 |
| Insulation Class | H Class |
We support complete customization and OEM services with design drawings. All units feature original power supplies and standard DSE 6120 controller (engine, generator, and controller are optional).
BOBIG products include a one-year or 1000-hour warranty (whichever comes first). We provide free replacement of defective parts during warranty and ongoing support thereafter.
