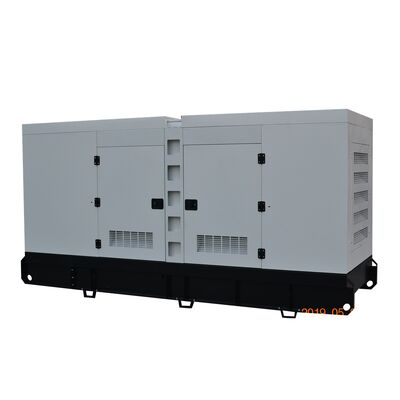

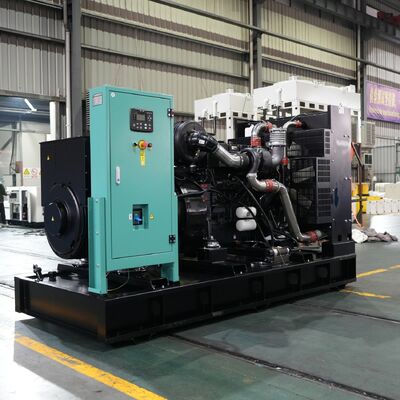

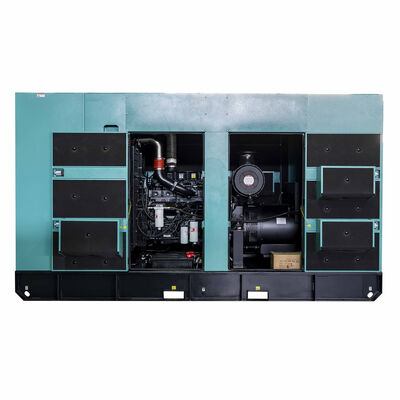

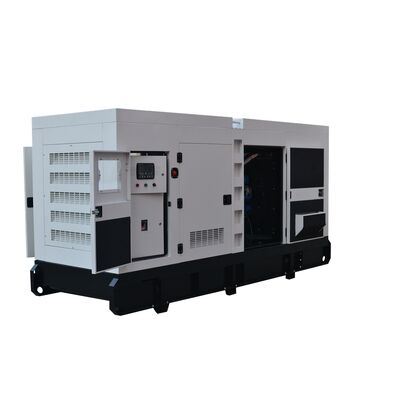

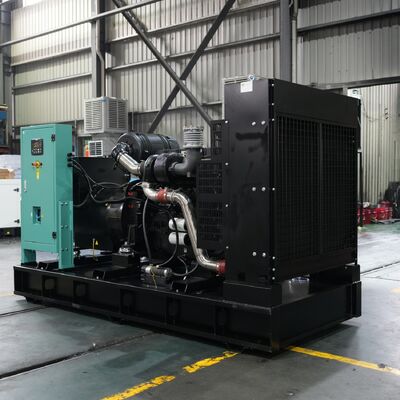

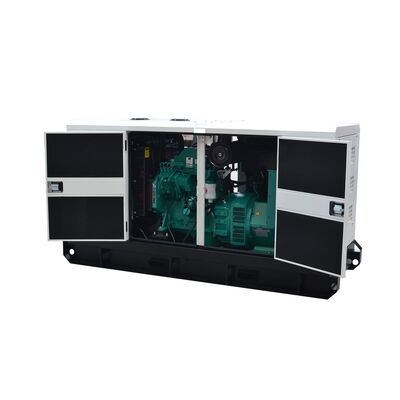

High quality water cooling DOOSAN diesel generator available in both open and silent configurations to meet diverse operational requirements.
| General information | Prime power | Standby power |
|---|---|---|
| Rated Power (kVA) | 225 | 248 |
| Power Rating (kW) | 180 | 198 |
| Frequency (Hz) | 50 | |
| Engine Model | DP086LA | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |

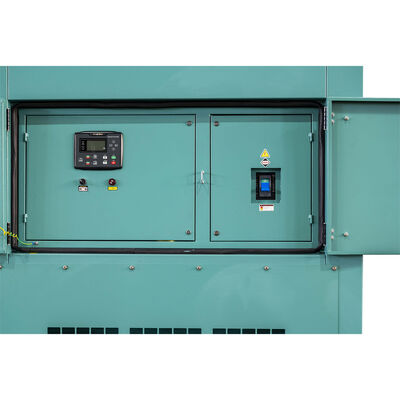

| Control System | Digital | |
| Rated voltage (V) | 400/230 (According to customer requirements) | |
| Dimension and Weight | Open type | Silent type |
|---|---|---|
| Model | BDO248 | BDO248S |
| Length (L) mm | 2600 | 3400 |
| Width (W) mm | 1000 | 1250 |
| Height (H) mm | 1850 | 1750 |
| Tank capacity (L) | 414 | 414 |
| Engine model & manufacturer | DP086LA(DOOSAN) |
| Engine Model | DP086LA |
| Engine Type | Diesel, water cooled, Turbo charged & intercooled |
| Bore x stroke | 111 × 139mm |
| Displacement | 8.07 liters |
| Cylinders and Arrangement | Cast iron, 6 cylinder, In-line Type |
| Battery charging alternator | 28.5V x 45A alternator |
| Starting voltage | 24V |
| Fuel System | Mechanical Injection Pump |
| Fuel Filter | Full flow, cartridge type with water drain valve |
| Lube oil filter type(s) | Full flow, cartridge type |
| Lube oil capacity (l) | Max. 15.5 liters, Min. 12 liters |
| Flywheel dimensions | Clutch No. 14 M |
| Dry weight | 790kg (engine only) |
| Dimension (LxWxH) | 1242 × 1122 × 1113 mm |
| Alternator Brand | BOBIG |
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-274J |
| Alternator Rated Power | 180kw/225kva |
| Rated voltage (V) | 230v/400v |
| Rated frequency | 50hz |
| Connecting Type | 3 Phase and 4 W |
| Number of Bearing | 1 |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper |
| Insulation Class | H class |
| Telephone Influence Factor (TIF) | ≤50 |
| THF | ≤2% |
| Voltage Regulation, Steady State | ≤±1% |
| Transient State Voltage | ≤-15%～+20% |
