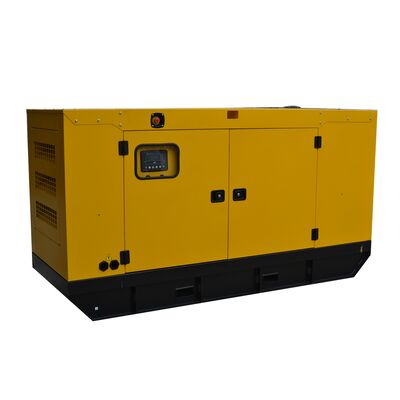

The YANGDONG YND485D Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned YANGDONG engine, this 15kW unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. Perfect for construction, industrial, commercial, and emergency backup applications.
| Specification | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 19 | 21 |
| Power Rating (kW) | 15 | 17 |
| Frequency (Hz) | 50 | |
| Engine Model | YND485D | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| Power Factor (PF) | 0.8 | |
| Control System | Digital | |
| Rated Voltage (V) | 400/230 (According to customer requirements) | |
| Fuel Tank Capacity Operating Time | ≥ 8h @ 75% load | |
| Model | BY21 (Open Type) | BY21S (Silent Type) |
|---|---|---|
| Length (L) mm | 1350 | 1900 |
| Width (W) mm | 610 | 850 |
| Height (H) mm | 1160 | 1050 |
| Tank Capacity (L) | 35 | 35 |
| Engine Model & Manufacturer | YND485D (YANGDONG) |
| Number of Cylinders | 4 |
| Injection Type | Direct |
| Aspiration | Natural |
| Configuration | Vertical |
| Bore | 85 mm |
| Stroke | 95 mm |
| Compression Ratio | 18 |
| Displacement | 2.156 L |
| Dry Engine Weight | 200 kg |
| Dimensions (L×W×H) | 820×590×638 mm |
| Flywheel Shell Interface | SAE4 |
| Governed Engine Speed | 1500 RPM |
| Continuous Power without Fans | 17 kW |
| Standby Power | 19 kW |
| Number of Flywheel Teeth | 115 |
| Alternator Brand | BOBIG |
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-184ES |
| Alternator Rated Power | 15kW/19kVA |
| Rated Voltage | 230V/400V |
| Rated Frequency | 50Hz |
| Connecting Type | 3 Phase and 4 Wire |
| Number of Bearings | 1 |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper |
| Insulation Class | H class |
| Telephone Influence Factor (TIF) | ≤50 |
| THF | ≤2% |
| Voltage Regulation, Steady State | ≤±1% |
| Transient State Voltage | ≤-15%～+20% |
Auto start and auto mains failure control module (Alternator frequency & CAN speed sensing)
