| Specification | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 438 | 481 |
| Power Rating (kW) | 350 | 385 |
| Frequency (Hz) | 50 | |
| Engine Model | YM6S9LF-DA | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| Power Factor (PF) | 0.8 | |

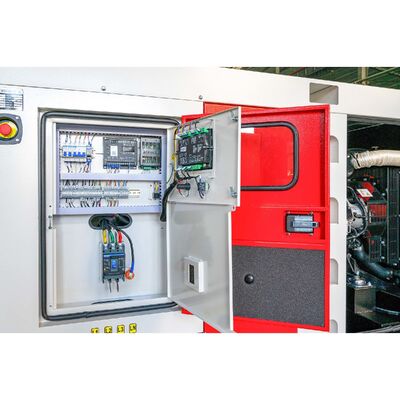

| Control System | Digital | |
| Rated Voltage (V) | 400/230 (Customizable) | |
| Fuel Tank Capacity | ≥ 8 hours @ 75% load | |
| Specification | Details |
|---|---|
| Engine Model & Manufacturer | YM6S9LF-DA (YTO) |
| Number of Cylinders | 6 |
| Cylinder Arrangement | In-line |
| Cycle | 4 stroke, compression ignition |
| Air Aspiration | Turbocharged with air to air cooler |
| Cooling Medium | Liquid |
| Bore | 126 mm |
| Stroke | 155 mm |
| Compression Ratio | 17.0:1 |
| Cubic Capacity | 11.596 L |
| Dry Engine Weight | 1100 kg |
| Specification | Details |
|---|---|
| Alternator Brand | BOBIG |
| Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-354C |
| Rated Power | 350kW/438kVA |
| Rated Voltage | 230V/400V |
| Protection Grade | IP23 |
| Insulation Class | H class |

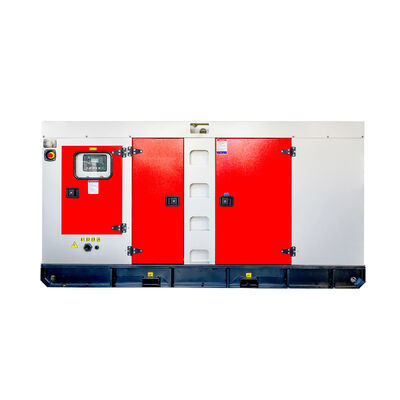

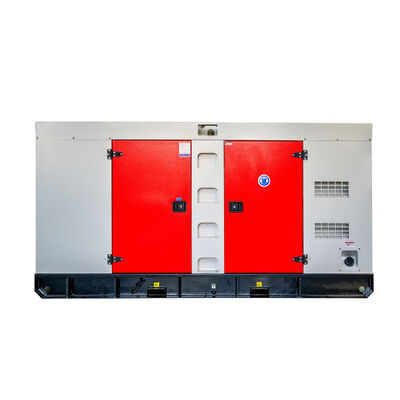

| Model | BYT481 (Open) | BYT481S (Silent) |
|---|---|---|
| Length (mm) | 3600 | 4500 |
| Width (mm) | 1500 | 1810 |
| Height (mm) | 2460 | 2360 |
| Tank Capacity (L) | 805 | 805 |
