| General information | Prime power | Standby power | |||||||
| Rated Power (kVA) | 375 | 413 | |||||||
| Power Rating (kW) | 300 | 330 | |||||||
| Frequency (Hz) | 50 | ||||||||
| Engine Model | DP126LB | ||||||||
| Engine Speed (RPM) | 1500 | ||||||||
| Phase | 3 | ||||||||
| PF | 0.8 | ||||||||
| Control System | Digital | ||||||||
| Rated voltage (V) | 400/230 (According to customer requirements) |
||||||||
| Fuel tank capacity operating time | ≥ 8h @ 75% load | ||||||||
| PRP ●Prime power is available for an unlimited number of annual hours in variable load application,in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation | |||||||||
| ESP ●The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption.No overload,utility parallel or negotiated outage operation capability is available at this ratin | |||||||||
| Dimension and Weight | |||||||||
| Model | BDO413 Open type |

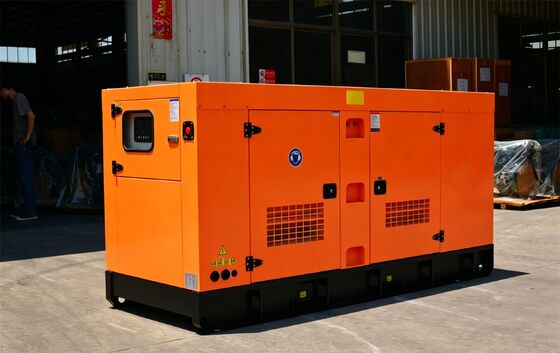

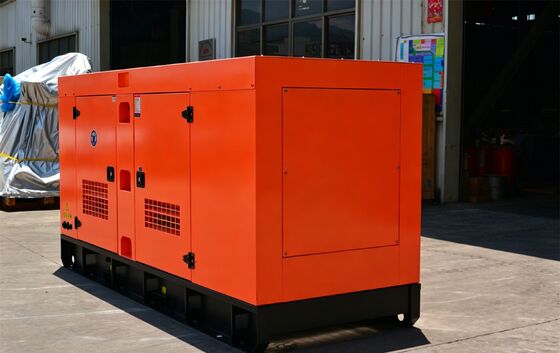

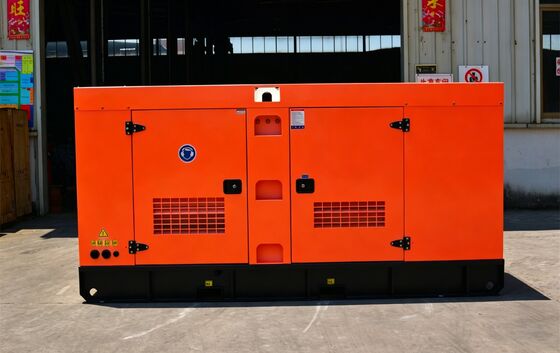

BDO413S Silent type |
|||||||
| Length (L) mm | 3100 | 4050 | |||||||
| Width (W) mm | 1050 | 1510 | |||||||
| Height (H) mm | 2150 | 2050 | |||||||
| Tank capacity (L) | 690 | 690 | |||||||
| Engine model & manufacturer | DP126LB(DOOSAN) | |||||||||||||
| Engine Model | DP126LB | |||||||||||||
| Engine Type | Diesel, water cooled, Turbo charged & intercooled | |||||||||||||
| Bore x stroke | 123 × 155mm | |||||||||||||
| Displacement | 11 liters | |||||||||||||
| Cylinders and Arrangement | Cast iron, 6 cylinder, , In-line Type | |||||||||||||
| Battery charging alternator | 24V x 80A alternator | |||||||||||||
| Starting voltage | 24V | |||||||||||||
| Fuel System | Mechanical Injection Pump | |||||||||||||
| Fuel Filter | Main(On Engine): Full flow, High efficiency dust in fuel filter, cartridge type Pre(Loosed Part): Full flow, cartridge type with water drain valve Fuel Filter |
|||||||||||||
| Lube oil filter type(s) | Full flow, cartridge type | |||||||||||||
| Lube oil capacity (l) | Max. 44 liters , Min. 20 liters | |||||||||||||
| Flywheel dimensions | Clutch No. 14 M | |||||||||||||
| Dry weight | 1008kg (engine only) | |||||||||||||
| Dimension (LxWxH) | 1426 × 1096 × 1295 mm | |||||||||||||
| Alternator | ||||||||||||||
| Alternator Brand | BOBIG | |||||||||||||
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD | |||||||||||||
| Alternator Model | BW-314F | |||||||||||||
| Alternator Rated Power | 300kw/375kva | |||||||||||||
| Rated voltage (V) | 230v/400v | |||||||||||||
| Rated frequency | 50hz | |||||||||||||
| Connecting Type | 3 Phase and 4 W | |||||||||||||
| Number of Bearing | 1 | |||||||||||||
| Protection Grade | IP23 | |||||||||||||
| Altitude | ≤1000m | |||||||||||||
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper | |||||||||||||
| Insulation Class | H class | |||||||||||||
| Telephone Influence Factor (TIF) | ≤50 | |||||||||||||
| THF | ≤2% | |||||||||||||
| Voltage Regulation, Steady State | ≤±1% | |||||||||||||
| Transient State Voltage | ≤-15%～+20% | |||||||||||||
