| General Information | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 30 | 33 |
| Power Rating (kW) | 24 | 26 |
| Frequency (Hz) | 50 | |
| Engine Model | 4DW92-39D-HMS20W | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |

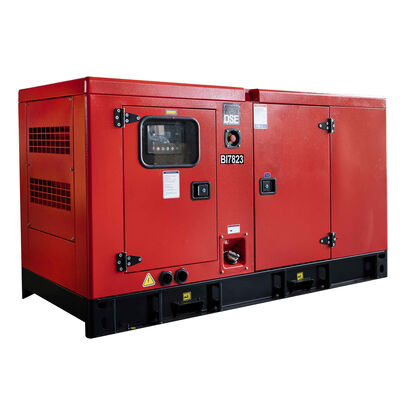

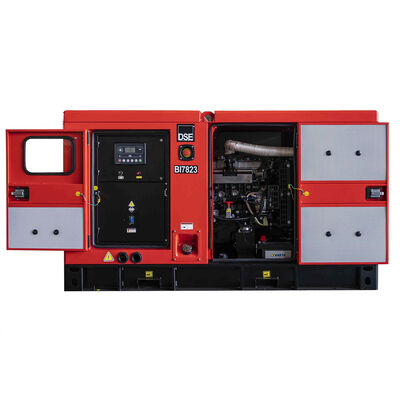

| Control System | Digital | |
| Rated Voltage (V) | 400/230 | |

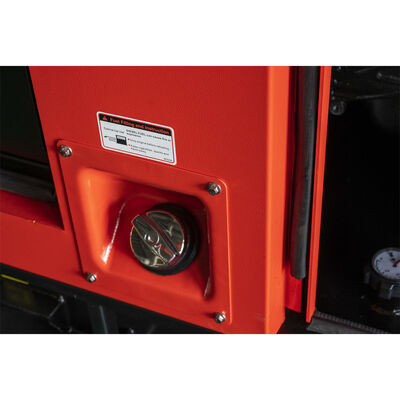

| Fuel Tank Capacity Operating Time | ≥ 8h @ 75% load | |

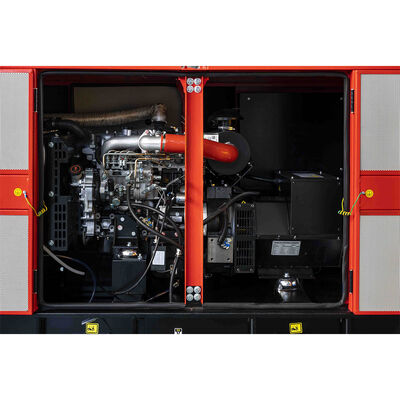

| Engine Model & Manufacturer | 4DW92-39D-HMS20W (FAWDE) |
|---|---|
| Engine Model | 4DW92-39D |
| No. of Cylinders | 4 |
| Cylinder Arrangement | In-line |
| Cycle | 4 stroke |
| Aspiration | Turbocharged |
| Cooling System | Water-cooled |
| Bore | 90 mm |
| Stroke | 100 mm |
| Compression Ratio | 17:1 |
| Displacement | 2.54 L |
| Dry Engine Weight | 250 kg |
| Dimension (L*W*H) | 700*590*680 |
| Alternator Brand | BOBIG |
|---|---|
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-184G |
| Alternator Rated Power | 24kw/30kva |
| Rated Voltage (V) | 230v/400v |
| Rated Frequency | 50hz |
| Connecting Type | 3 Phase and 4 W |
| Number of Bearing | 1 |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper |
| Insulation Class | H class |
